진공밸브

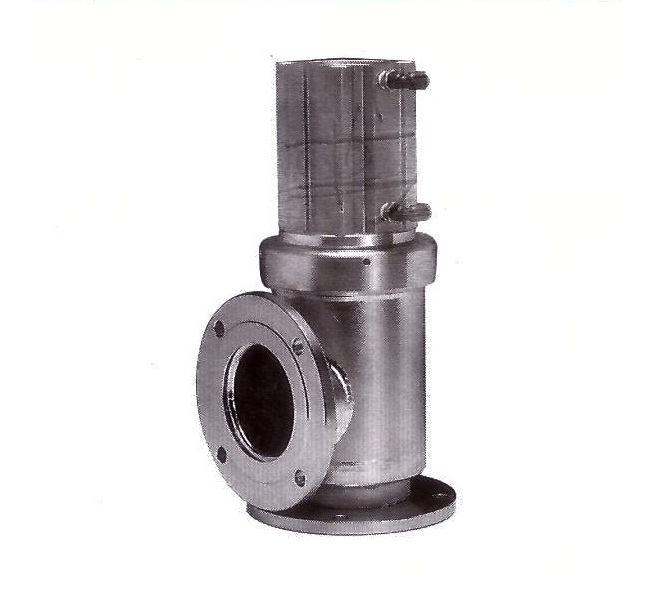

ANGLE VALVE(LAV TYPE)

진공밸브

Design

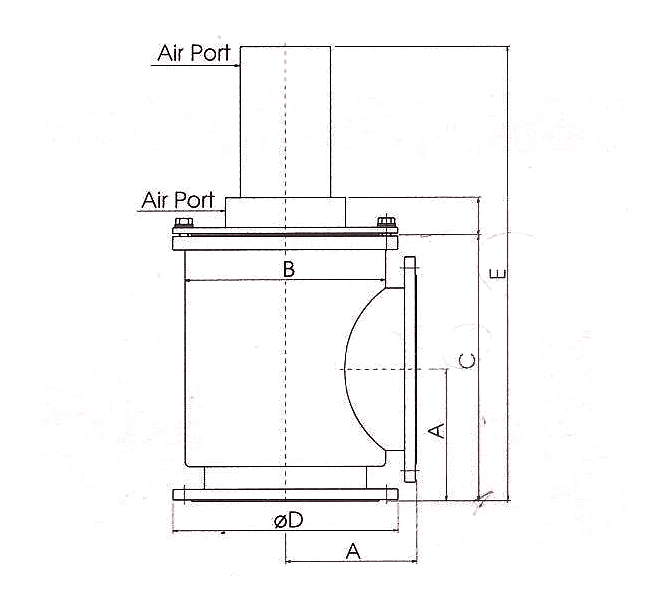

Outline Drawing(mm)

제품소개

NBR O-Ring Sealed Bonnets for High Vacuum Application
Pneumatically Operated
Flange Type(VG/VF Type)

Dimensions

Reference	Order No.	A(mm)	B(mm)	C(mm)	ØD(mm)	E(mm)	Air Entrance	Weight(kg)
LAV-1	B-005-91AV	55	49	109	90	195	PT 1/8	1.6
LAV-2	B-005-92AV	75	76	146	120	257	PT 1/4	3.5(3.6)
LAV-3	B-005-93AV	95	114	196	160	377	PT 3/8	7.2(9.0)
LAV-4	B-005-94AV	110	140	220	185	438	PT 1/2	9.7(18.0)
LAV-6	B-005-95AV	130	200	270	235	567	PT 1/2	21(33)
LAV-8	B-005-96AV	175	267	355	300	688	PT 1/2	44.5(54)
LAV-10	B-005-97AV	200	320	400	350	768	PT 1/2	59(71)
LAV-14	B-005-98AV	260	400	510	450	966	PT 1/2	105(120)
LAV-18	B-005-99AV	350	508	700	575	1228	PT 1/2	240

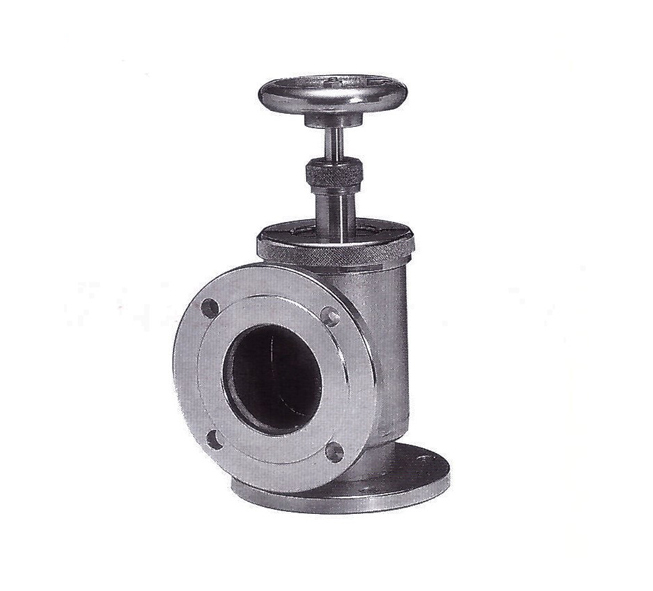

ANGLE VALVE(LV TYPE)

진공밸브

Design

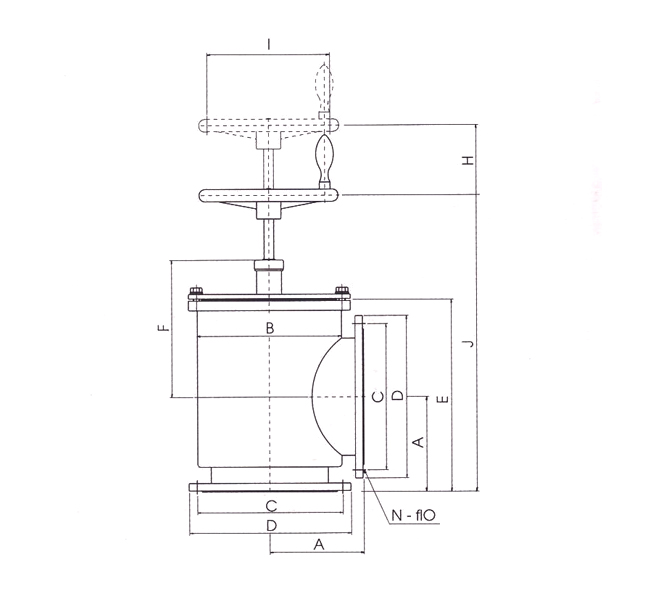

Outline Drawing(mm)

제품소개

NBR O-Ring Sealed Bonnets for High Vacuum Application
Manually Operated
Flange Type(VG/VF Type)

Dimensions

Reference	Order No.	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	H(mm)	I(mm)	J(mm)	Weight(kg)
LV-2	B-005-71AV	50	43	100	120	95	65	55	53	169	1.2
LV-3	B-005-72AV	55	49	135	160	105	81	65	53	196	1.6
LV-4	B-005-73AV	75	76	160	185	141	100	74	75	256	3.5
LV-6	B-005-74AV	95	114	210	235	197	134	74	95	329	7.2
LV-10	B-005-75AV	110	140	320	350	223	159	87	123	385	9.7
LV-14	B-005-76AV	130	200	420	450	270	216	125	174	505	21
LV-18	B-005-77AV	175	267	535	575	355	254	134	225	633	44.5
LV-22	B-005-78AV	200	320	640	680	400	369	240	250	820	59
LV-26	B-005-79AV	260	400	750	800	510	488	300	250	1080	105
